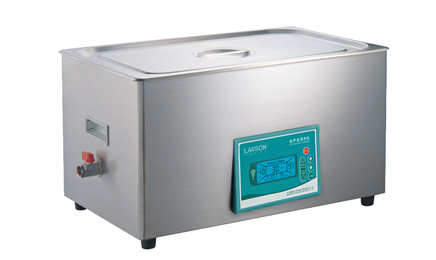

Ultrasonic cleaner,DH25-12DTD

DH25-12DTD
Ultrasonic cleaner
Capacity: 22.5L, Ultrasonic Power: 600W / 720W, Power Adjustable: 40% - 100%, Temperature Adjustable: Room temperature - 80℃.

Ultrasonic cleaner DH25-12DTD is mainly used in the fields of regular cleaning, extraction, emulsification, mixing, degassing, dispersion, etc. Its advantages include a large LCD screen displaying adjustable time, power, and temperature, and the instrument has a memory function for working parameters after power-off, making it convenient for direct call-up and data query. It is widely used in laboratories, mechanical and electrical industries, jewelry, dental and medical industries, optics, and other fields.

Product Introduction
Ultrasonic cleaner DH25-12DTD is mainly used in the fields of regular cleaning, extraction, emulsification, mixing, degassing, dispersion, etc. Its advantages include a large LCD screen displaying adjustable time, power, and temperature, and the instrument has a memory function for working parameters after power-off, making it convenient for direct call-up and data query. It is widely used in laboratories, mechanical and electrical industries, jewelry, dental and medical industries, optics, and other fields.

Product Introduction

Ultrasonic cleaner DH25-12DTD is mainly used in the fields of regular cleaning, extraction, emulsification, mixing, degassing, dispersion, etc. Its advantages include a large LCD screen displaying adjustable time, power, and temperature, and the instrument has a memory function for working parameters after power-off, making it convenient for direct call-up and data query. It is widely used in laboratories, mechanical and electrical industries, jewelry, dental and medical industries, optics, and other fields.

Product Features
Power-off protection	Working parameter power-off memory function
Digital display screen	Displays remaining time and actual temperature in the tank
Adjustable time	1-999 min total working time setting
Heating function	Adjustable range at room temperature to 80℃
Adjustable power	Power 40%-100% adjustable
High-quality material	The inner and outer shells and the soundproof cover of the instrument are made of high-quality stainless steel.

Working Principle
Through the transducer, the acoustic energy of the power ultrasonic source is converted into mechanical vibration, which is then radiated into the cleaning solution in the tank through the tank wall. Due to the radiation of ultrasonic waves, the microbubbles in the liquid in the tank can quickly grow and burst under the action of the sound waves. The high-intensity shear force generated during the bubble collapse acts on various types of samples, achieving the functions of cleaning, extraction, emulsification, accelerated dissolution, pulverization, dispersion, etc.

Working Principle

Through the transducer, the acoustic energy of the power ultrasonic source is converted into mechanical vibration, which is then radiated into the cleaning solution in the tank through the tank wall. Due to the radiation of ultrasonic waves, the microbubbles in the liquid in the tank can quickly grow and burst under the action of the sound waves. The high-intensity shear force generated during the bubble collapse acts on various types of samples, achieving the functions of cleaning, extraction, emulsification, accelerated dissolution, pulverization, dispersion, etc.

Application Fields
• Cleaning of glassware, centrifuge tubes, and other consumables; degassing of liquid reagents; sample crushing, homogenization, dispersion
• Thorough cleaning and restoration of brilliance for watches, precious metals and gemstones, chains, and other jewelry
• Deep cleaning of precision bearings, fuel injectors, metal and plastic workpieces, and removal of dust and grease
• Cleaning and disinfection of medical equipment such as surgical and dental instruments
• Removal of grease and dust from optical microscope lenses, camera lenses, and quartz precision glassware

Technical Parameters
Model:	DH25-12DTD
Capacity:	22.5L
Frequency:	40KHz
Adjustable Power:	40-100%
Power:	600W / 720W
Heating Power:	800W
Adjustable Time:	1-999 min
Adjustable Temperature:	Room temperature-80℃
Mesh Basket:	Yes
Soundproof Cover:	Yes
Drainage:	Yes
Net Weight:	6.2Kg
Internal Tank Size:	500300150mm
Package Size:	640395375mm

DTD Series Parameter List
Model	Capacity (L)	Frequency (KHz)	Ultrasonic Power (W)	Power Adjustable (W)	Drainage	Basket	Tank Size (L×W×H) (mm)	Heating Power (W)	Temperature Adjustable (℃)
DH-3200DTD	6	40	180	40～100%	/	Yes	300×155×150	400	Room Temp～80
DH-5200DTD	10	40	240	40～100%	Yes	Yes	300×240×150	800	Room Temp～80
DH-5200DTD	10	40	360	40～100%	Yes	Yes	300240150	800	Ambient temperature to 80
DH-4200DTD	14.4	40	480	40～100%	Yes	Yes	300240200	800	Ambient temperature to 80
DH25-12DTD	22.5	40	600	40～100%	Yes	Yes	*500300150*	1000	Ambient temperature to 80
DH25-12DTD	22.5	40	720	40～100%	Yes	Yes	*500300150*	1000	Ambient temperature to 80
DH-800DTD	30	40	840	40～100%	Yes	Yes	600300200	1000	Ambient temperature to 80

Single Page - Color Page
Name:	Author:	Action:
Ultrasonic cleaner DH25-12DTD	ultrasonic cleaner	Download

Related products
Name:	Model:
Ultrasonic cleaner	DH25-12DTD
Ultrasonic cleaner	DH-4200DTD
Sonic Cleaner	DH-5200DTD

Product List

DH25-12DTD	Unit
Host Machine	Unit
Cleaning machine cover	piece
Mesh basket	piece
Power cord	piece
User manual	copy
Warranty card	copy
Certificate of qualification	copy

Description: 1; 1; 1; 1; 1; 1; 1
